Loud output
Low current consumption
High efficiency and reliability
PCB mounting
Characteristic Min Typical Max Notes
Type Piezo
Excitation External Driven Tone: Continuous
Sound Pressure Level dB at 30cm 90 Measured 90 dB at 30cm
Frequency kHz 3.4 Rated frequency ± 0.5 kHz
Voltage V 6 9 12 peak to peak voltage of square wave
Current mA 10
Temperature ºC -20 70
Width mm 40.6 Case:ABS/White
Height mm 19.3
Weight g 12.2
Termination pin

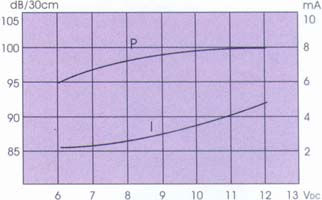

Characteristic Response:

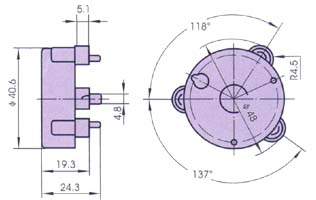

Dimension Drawing:

Driver Circuit
