MXE-204P

Characteristic Min Typical Max Notes
Type Magnetic
Excitation External Driven Tone: Continuous
Sound Pressure Level dB at 30cm 74.5 Measured 84 dB at 1400±200Hz & 1.1V-RMS Sine Wave & 10cm
Frequency kHz 1.2 1.4 1.6 Rated frequency ±0.2
Voltage V 1.1 RMS Sine Wave
Temperature ºC -20 70
Width mm 29.8
Height mm 12.7
Termination pin Pin separation: 15.00mm

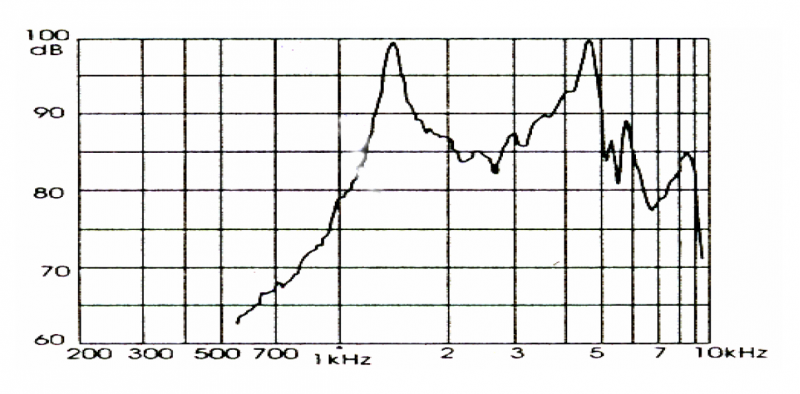

Characteristic Response:

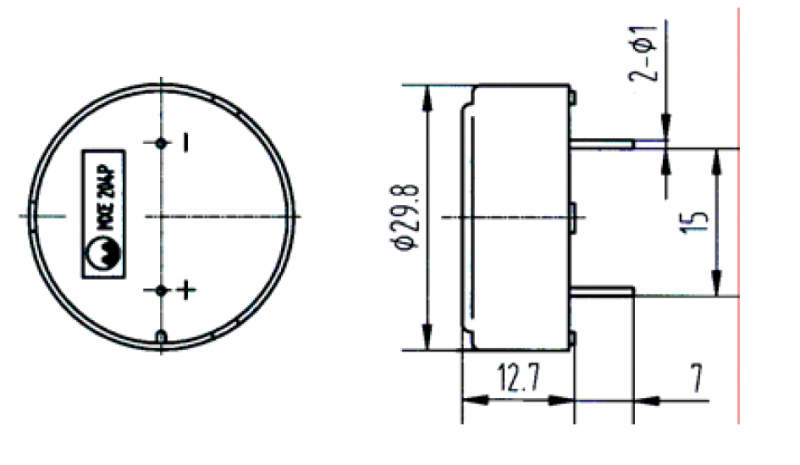

Dimension Drawing:
