Characteristic | Min | Typical | Max | Notes |
Type | Magnetic | |||
Excitation | External Driven | Tone: Continuous | ||
Sound Pressure Level dB at 30cm | 60.46 | 70dB/4000Hz/3V /10cm | ||
Frequency kHz | 4 | |||
Voltage V | 2 | 3 | 4 | |
Temperature ºC | -20 | 70 | ||
Width mm | 4 | 4 | ||
Height mm | 2 | |||
Termination | solder tab |

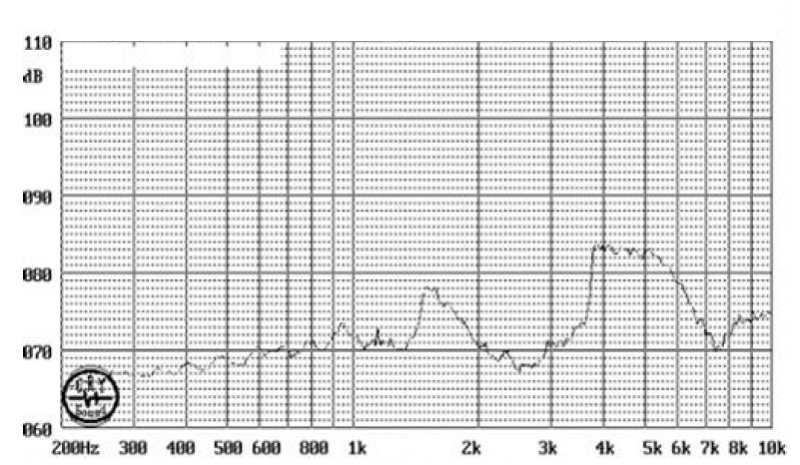

Characteristic Response:
![](https://www.east-elec.com/sites/default/files/sounder/111111.png)

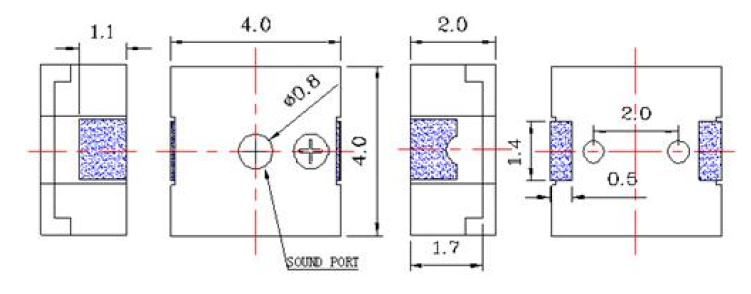

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/sounder/2_2.png)
