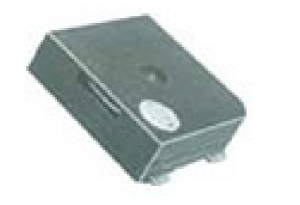

SFM-1027-03A

Characteristic Min Typical Max Notes
Type Magnetic
Excitation External Driven Tone: Continuous
Sound Pressure Level dB at 30cm 75.5 Measured 85(type 90) dB at 3.6V & 10cm
Frequency kHz 2.7 2.7 2.7
Voltage V 6.4 7.2 9 p-p Square Wave
Current mA 100 2700Hz ; 7.2V p-p Square Wave 3.6V DC
Temperature ºC -30 70
Width mm 10
Height mm 3
Termination surface mount

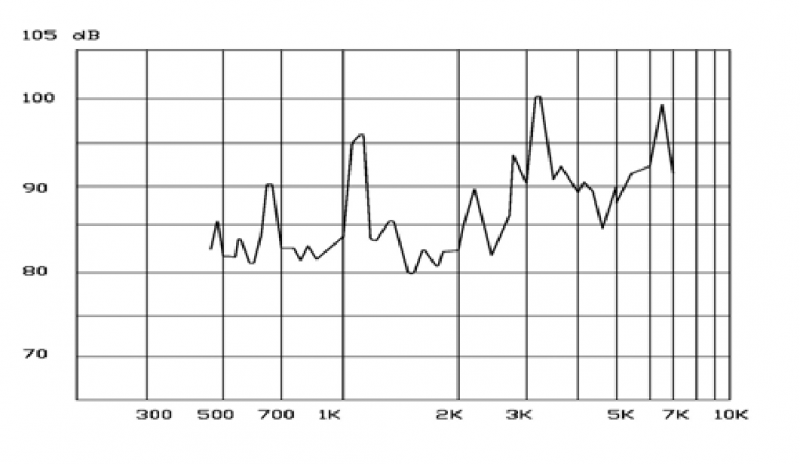

Characteristic Response:

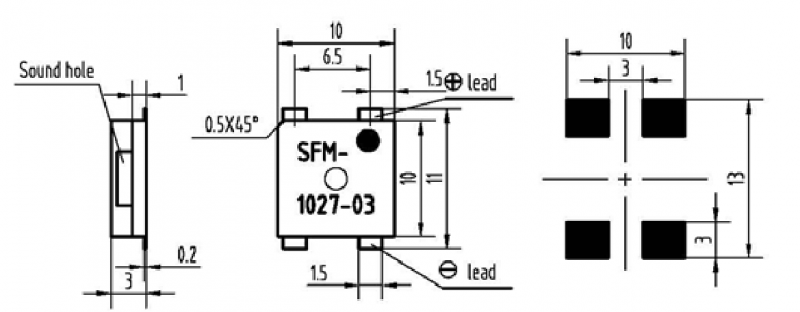

Dimension Drawing:
