Features:
SMD Type
Can Endure Re-flow Solder Process
| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 73.46 | Measured 83 dB at 10cm | ||
| Frequency kHz | 2.4 | |||
| Voltage V | 2 | 3 | 5 | peak to peak voltage of square wave |
| Current mA | 70 | |||
| Available Input Impedance Ω | 16 | ± 4 | ||
| Temperature ºC | -30 | 85 | ||
| Width mm | 12.8 | Case:PPS/Grey | ||
| Height mm | 6.5 | |||
| Termination | surface mount |

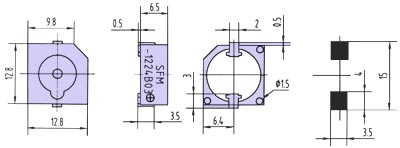

Dimension Drawing:
