SMD Type
Can Endure Re-flow Solder Process
Characteristic Min Typical Max Notes
Type Magnetic
Excitation External Driven Tone: Continuous
Sound Pressure Level dB at 30cm 77.46 Measured 87 dB at 10cm
Frequency kHz 2.4
Voltage V 8 12 16 peak to peak voltage of square wave
Current mA 40
Available Input Impedance Ω 140 ± 14
Temperature ºC -30 85
Width mm 12.8 Case:PPS/Grey
Height mm 6.5
Termination surface mount

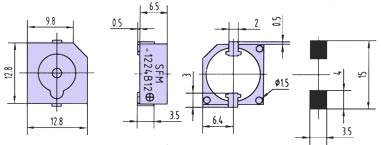

Dimension Drawing:
