| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 65.5 | Measured 75 dB at 3V-DC & 10cm | ||
| Frequency kHz | 2 | 2.4 | 2.8 | Rated frequency ± .4 |
| Voltage V | 8 | 3 | 15 | DC |
| Current mA | 30 | 3V DC | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 12.8 | |||
| Height mm | 6.5 | |||
| Termination | surface mount |

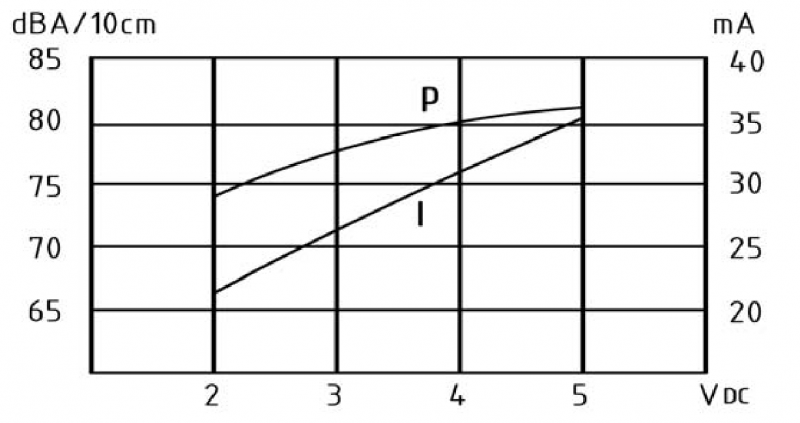

Characteristic Response:

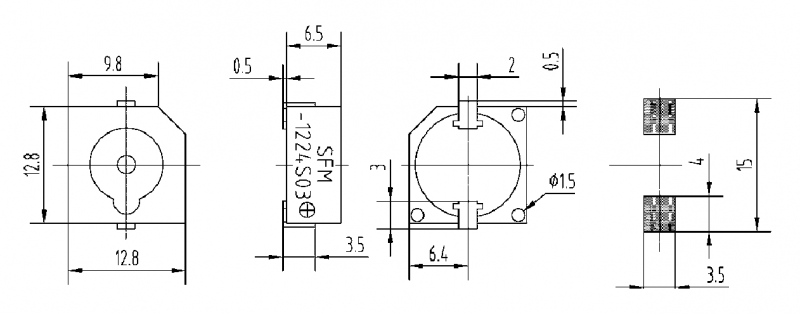

Dimension Drawing:
