Features:
SMD
Super thin
Low current
| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 60.46 | Measured 70 dB at 10cm | ||
| Frequency kHz | 4.1 | Rated frequency ± 0.5 kHz | ||
| Voltage V | 5 | 20 | peak to peak voltage of square wave | |
| Current mA | 3 | |||
| Temperature ºC | -20 | 70 | ||
| Width mm | 12 | Case:PPS/Black | ||
| Height mm | 3 | |||
| Weight g | 0.7 | |||
| Termination | surface mount |
Characteristic Response:

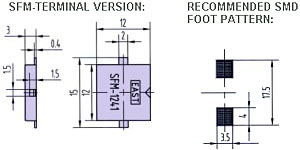

Dimension Drawing:
