SMD Type
Can Endure Re-flow Solder Process
With Circuit inside
Characteristic Min Typical Max Notes
Type Magnetic
Excitation Internal Driven Tone: Continuous
Sound Pressure Level dB at 30cm 80.46 Measured 90 dB at 10cm
Frequency kHz 2.4 Rated frequency ± 0.3 kHz
Voltage V 8 12 16 DC voltage
Current mA 20
Temperature ºC -30 85
Width mm 12.8
Height mm 10
Weight g 2
Termination surface mount
Characteristic Response:

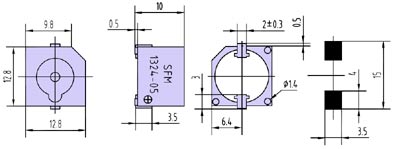

Dimension Drawing:
