Features:
SMD
Super thin
Low current
![](https://www.east-elec.com/sites/default/files/sounder/smd1-31_0_0.jpg)
Characteristic | Min | Typical | Max | Notes |
Type | Piezo | |||
Excitation | External Driven | Tone: Continuous | ||
Sound Pressure Level dB at 30cm | 78.46 | Measured 88 dB at 10cm | ||
Voltage V | 10 | peak to peak voltage of square wave | ||
Temperature ºC | -20 | 85 | ||
Width mm | 14.3 | Case:PPS/Black | ||
Height mm | 10.6 | |||
Weight g | 2.4 | |||
Termination | surface mount |
Characteristic Response:
![](https://www.east-elec.com/sites/default/files/sounder/smd1-33_0_0.jpg)

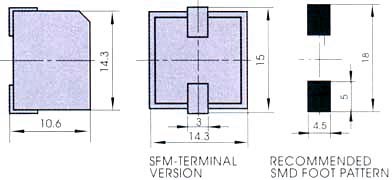

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/sounder/smd1-32_0_0.jpg)
