Super thin
Low current
Characteristic Min Typical Max Notes
Type Piezo
Excitation External Driven Tone: Continuous
Sound Pressure Level dB at 30cm 72.46 Measured 82 dB at 10cm
Frequency kHz 2 Rated frequency ± 0.5 kHz
Voltage V 3.6 25 peak to peak voltage of square wave
Current mA 8
Temperature ºC -20 70
Width mm 18.4 Case:PPS/Black
Height mm 7.2
Weight g 1.7
Termination surface mount
Characteristic Response:

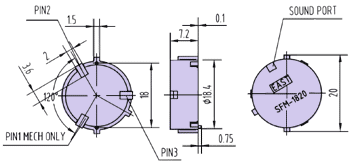

Dimension Drawing:
