| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 68.5 | Measured 78 dB at 3.6V & 10cm | ||
| Frequency kHz | 4 | 4 | 4 | |
| Voltage V | 2.5 | 3.6 | 4.5 | |
| Current mA | 100 | 4000Hz ; 3.6V p-p Square Wave 3.6V DC | ||
| Temperature ºC | -20 | 60 | ||
| Width mm | 5 | |||
| Height mm | 3 | |||
| Termination | surface mount |

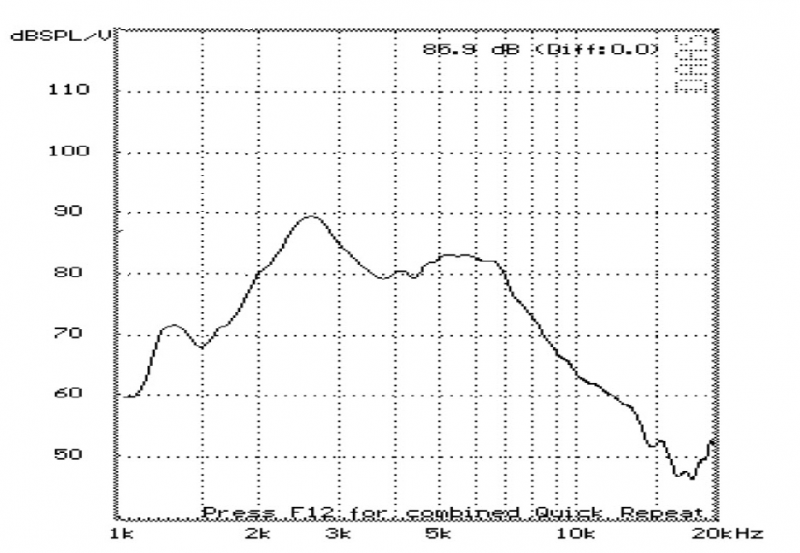

Characteristic Response:

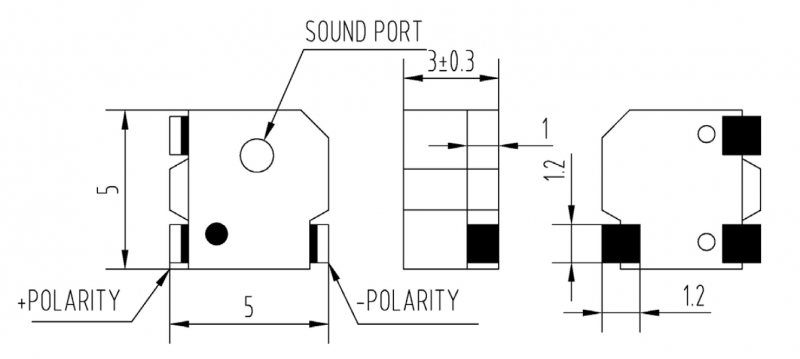

Dimension Drawing:
