| Characteristic | Min | Typical | Max | Notes |
| Type | Magnetic | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 75.5 | Measured 85(type 90) dB at 3V & 10cm | ||
| Frequency kHz | 2.7 | 2.72 | 2.73 | |
| Voltage V | 2 | 3 | 4 | |
| Current mA | 80 | 2730Hz ; 6V p-p Square Wave 3V DC | ||
| Temperature ºC | -40 | 85 | ||
| Width mm | 9 | |||
| Height mm | 4 | |||
| Termination | surface mount |

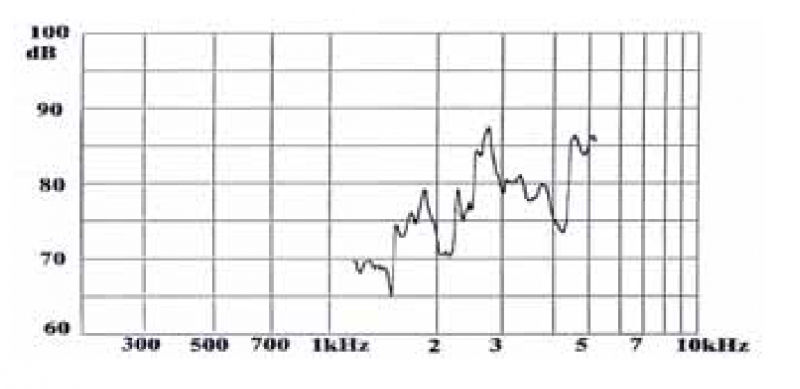

Characteristic Response:

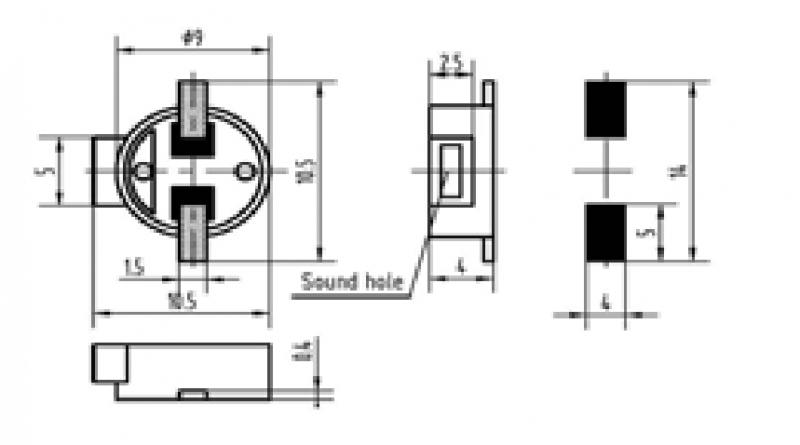

Dimension Drawing:
