SL1I-12L

Characteristic Min Typical Max Notes
Type Piezo
Excitation Internal Driven Tone: Continuous
Sound Pressure Level dB at 30cm 88 Measured 88 dB at 12V-DC & 30cm
Frequency kHz 2.8 3.3 3.8 Rated frequency ± 0.5
Voltage V 9 12 15 DC
Current mA 15 12 V DC
Temperature ºC -20 70
Width mm 23.5
Height mm 19
Termination lead wire

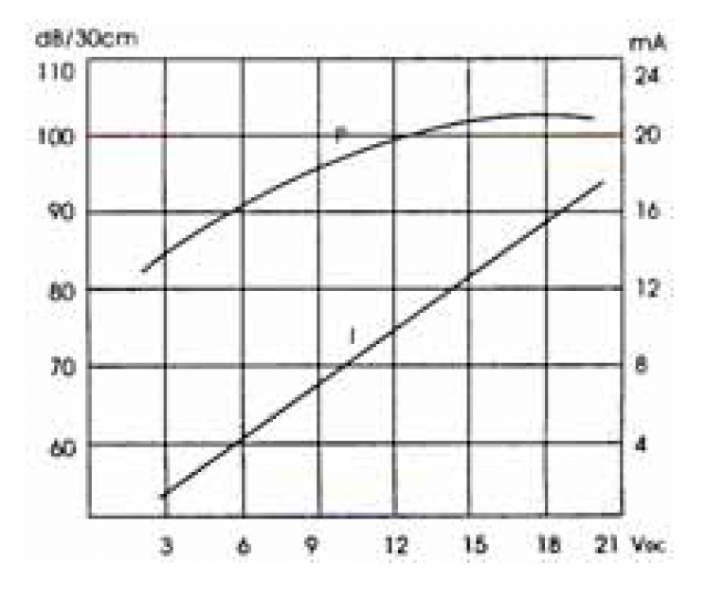

Characteristic Response:

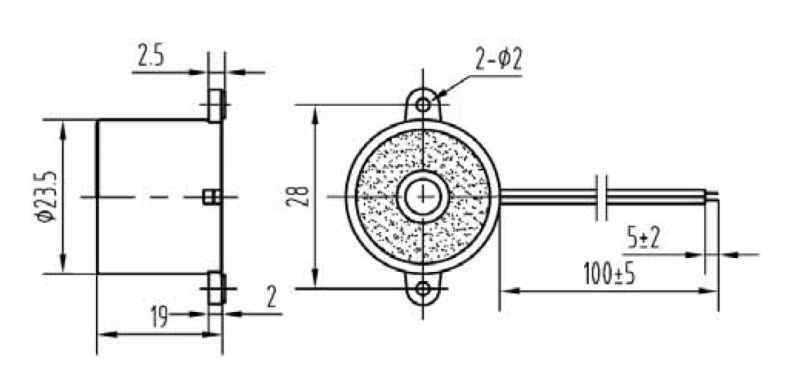

Dimension Drawing:
