SL1I-48P

Characteristic Min Typical Max Notes
Type Piezo
Excitation Internal Driven Tone: Continuous
Sound Pressure Level dB at 30cm 88 Measured 88 dB at 48V-DC & 30cm
Frequency kHz 2.8 3.3 3.8 Rated frequency ± 0.5
Voltage V 38 48 58 DC
Current mA 18 48 V DC
Temperature ºC -20 70
Width mm 23.5
Height mm 19
Termination pin Pin separation: 15.00mm

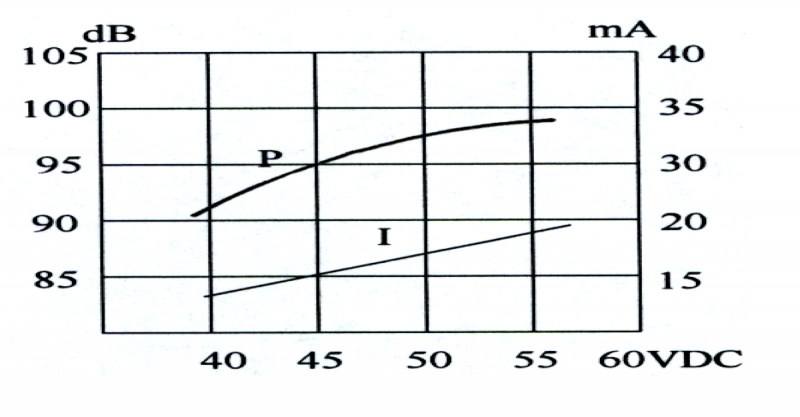

Characteristic Response:

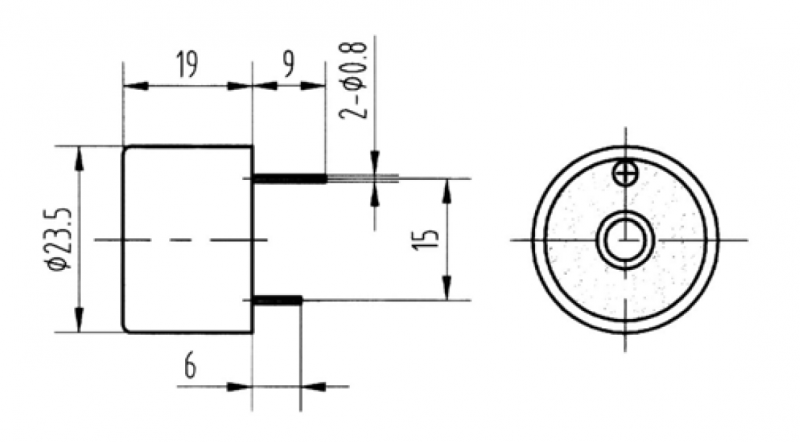

Dimension Drawing:
