Light and compact
High Output
Low frequency
Characteristic Min Typical Max Notes
Type Piezo
Excitation External Driven Tone: Square Wave
Sound Pressure Level dB at 30cm 90 Measured 90 dB at 30cm
Frequency kHz 3.6 Rated frequency ± 0.5 kHz
Voltage V 12 peak to peak voltage of square wave
Peak voltage allowed V 45
Current mA 8
Input Capacitance nF 12 ± 30% measured at 120 Hz
Temperature ºC -20 70
Width mm 23 Case:ABS/Black
Height mm 16
Weight g 5
Termination pin
Characteristic Response:

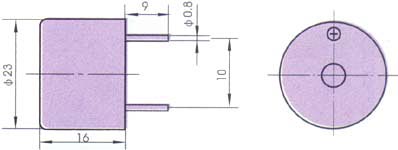

Dimension Drawing:
