| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 75.5 | Measured 85 dB at 6V-DC & 10cm | ||
| Frequency kHz | 4 | 5 | 6 | Rated frequency ± 1.0 |
| Voltage V | 6 | DC | ||
| Current mA | 5 | 6 V DC | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 25 | |||
| Height mm | 5 | |||
| Termination | lead wire |

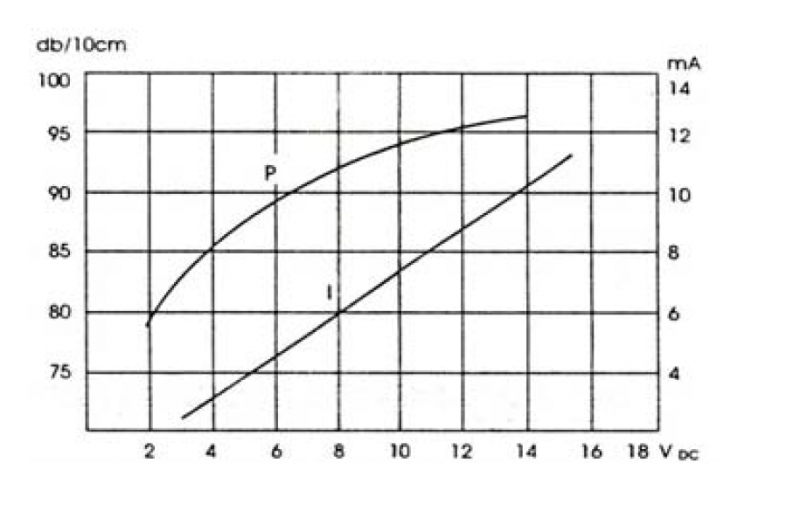

Characteristic Response:

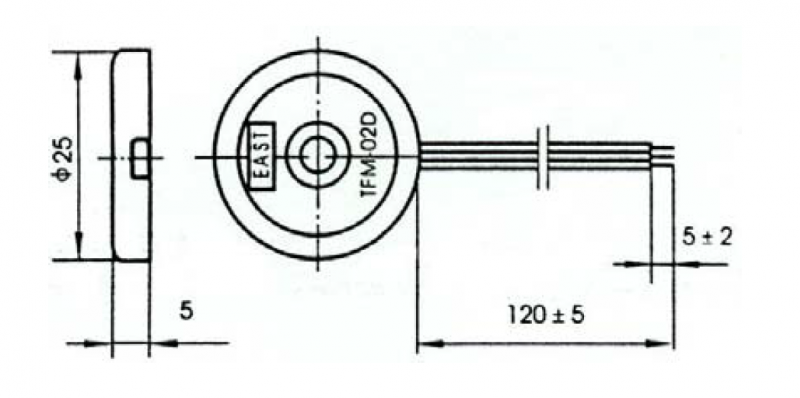

Dimension Drawing:
