Low frequency
Low current drain
Light and compact
Characteristic Min Typical Max Notes
Type Piezo
Excitation External Driven Tone: Square Wave
Sound Pressure Level dB at 30cm 70.46 Measured 80 dB at 10cm
Frequency kHz 1 Rated frequency ± 0.5 kHz
Voltage V 5 peak to peak voltage of square wave
Peak voltage allowed V 40
Current mA 1.5
Input Capacitance nF 45 ± 30% measured at 120 Hz
Temperature ºC -20 70
Width mm 34.2 Case:ABS/Black
Height mm 8.5
Weight g 5
Termination pin
Characteristic Response:

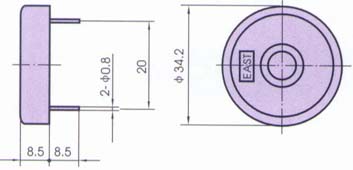

Dimension Drawing:
