Low frequency
Low current drain
Light and compact
Characteristic Min Typical Max Notes
Type Piezo
Excitation External Driven Tone: Square Wave
Sound Pressure Level dB at 30cm 70.46 Measured 80 dB at 10cm
Frequency kHz 1 Rated frequency ± 0.5 kHz
Voltage V 5 peak to peak voltage of square wave
Peak voltage allowed V 40
Current mA 6
Input Capacitance nF 60 ± 30% measured at 120 Hz
Temperature ºC -20 70
Width mm 44 Case:ABS/Black
Height mm 14
Weight g 10
Termination lead wire

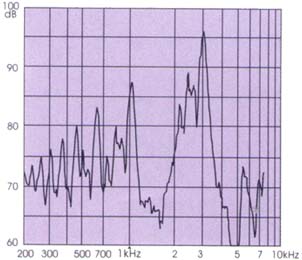

Characteristic Response:

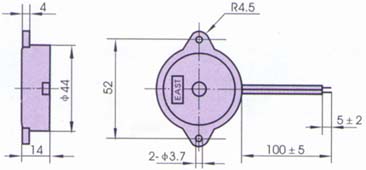

Dimension Drawing:
