Low frequency
High output
Mild sound
Characteristic Min Typical Max Notes
Type Piezo
Excitation External Driven Tone: Square Wave
Sound Pressure Level dB at 30cm 80 Measured 80 dB at 30cm
Frequency kHz 1 Rated frequency ± 0.5 kHz
Voltage V 12 peak to peak voltage of square wave
Peak voltage allowed V 40
Current mA 6
Input Capacitance nF 66 ± 30% measured at 120 Hz
Temperature ºC -20 70
Width mm 44 Case:ABS/Black
Height mm 14
Weight g 10
Termination lead wire

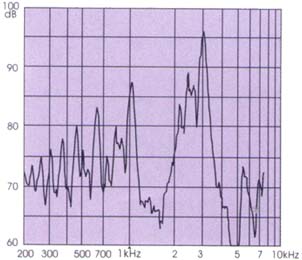

Characteristic Response:

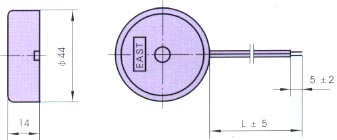

Dimension Drawing:
