Features:
Light and compact
Low Current Drain
Clear Sound
Used in Electronic Instruments, Automatic Control Equipment etc

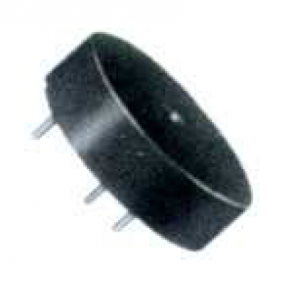

![](https://www.east-elec.com/sites/default/files/sounder/1_104_0.png)
Characteristic | Min | Typical | Max | Notes |
Type | Piezo | |||
Excitation | External Driven | Tone: Continuous | ||
Sound Pressure Level dB at 30cm | 80.5 | Measured 90 dB at 12V-DC & 10cm | ||
Frequency kHz | 5.5 | 6.4 | 7.3 | |
Voltage V | 12 | DC | ||
Current mA | 18 | 12V DC | ||
Temperature ºC | -20 | 85 | ||
Width mm | 25 | |||
Height mm | 7 | |||
Termination | pin | Pin separation: 8.50mm |

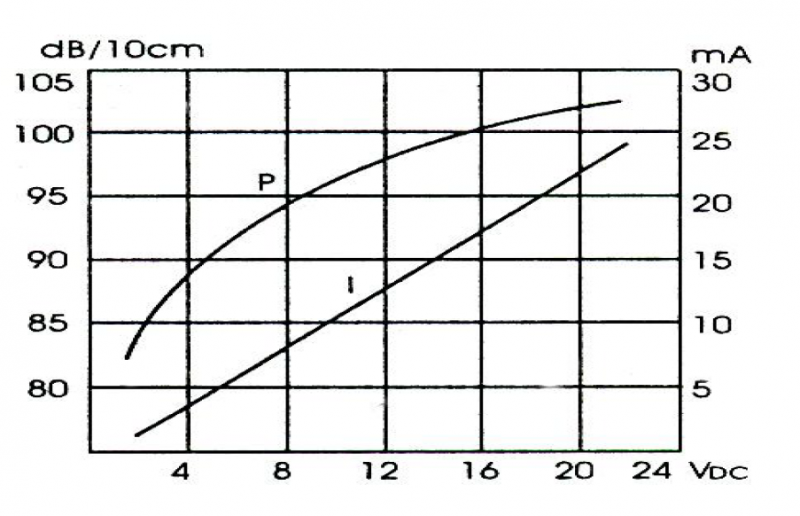

Characteristic Response:
![](https://www.east-elec.com/sites/default/files/sounder/3_111_0.png)

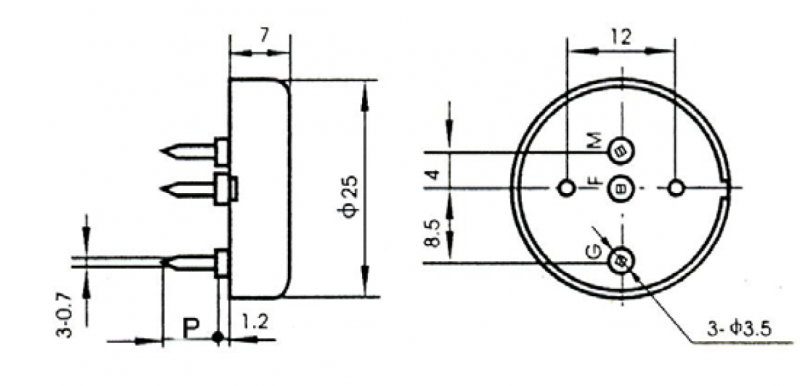

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/sounder/2_115_0.png)

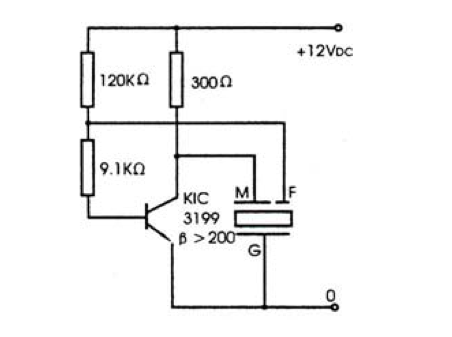

Test Circuit
![](https://www.east-elec.com/sites/default/files/sounder/tfm-14a-circ.png)
