Mini size structure
Multiple application
Light and compact
Characteristic Min Typical Max Notes
Type Piezo
Excitation External Driven Tone: Square Wave
Sound Pressure Level dB at 30cm 62.46 Measured 72 dB at 10cm
Frequency kHz 4 Rated frequency ± 0.5 kHz
Voltage V 9 peak to peak voltage of square wave
Peak voltage allowed V 25
Current mA 1.5
Input Capacitance nF 9.5 ± 30% measured at 120 Hz
Temperature ºC -20 70
Width mm 16.5 Case:ABS/Black
Height mm 4
Weight g 1.2
Termination lead wire
Characteristic Response:

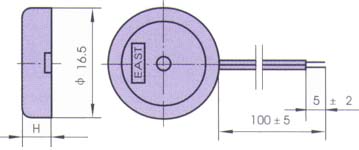

Dimension Drawing:
