Light and Compact
Suitable for wave soldering and washing request
Characteristic Min Typical Max Notes
Type Piezo
Excitation External Driven Tone: Square Wave
Sound Pressure Level dB at 30cm 75.46 Measured 85 dB at 10cm
Frequency kHz 2 Rated frequency ± 0.5 kHz
Voltage V 9 peak to peak voltage of square wave
Peak voltage allowed V 40
Current mA 5
Input Capacitance nF 45 ± 30% measured at 120 Hz
Temperature ºC -20 70
Width mm 30.5 Case:PC/Black
Height mm 9
Weight g 5.5
Termination pin
Characteristic Response:

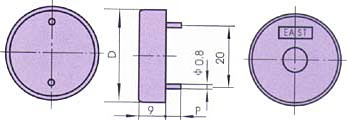

Dimension Drawing:
