Characteristic Min Typical Max Notes
Type Piezo
Excitation External Driven Tone: Continuous
Sound Pressure Level dB at 30cm 105 Measured 85 dB at 300cm
Frequency kHz 3.4 Rated frequency ± 0.5 kHz
Voltage V 6 9 14 peak to peak voltage of square wave
Current mA 30
Temperature ºC -20 70
Width mm 30.6 30.6 Case:PC/Black
Height mm 16
Weight g 8.85
Termination pin

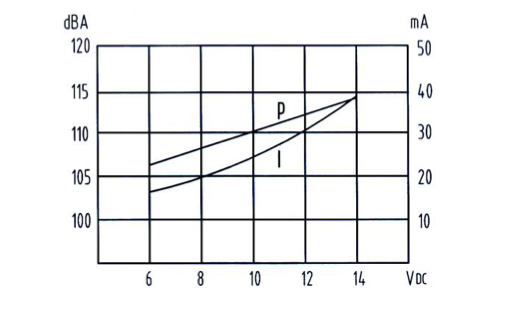

Characteristic Response:

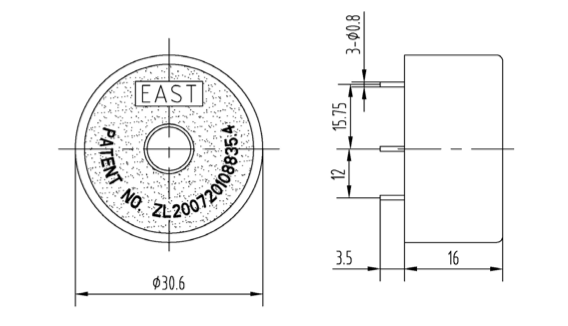

Dimension Drawing:

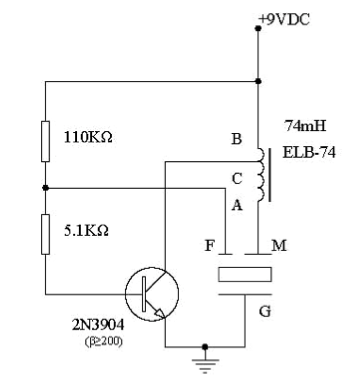

Driver Circuit
