![](https://www.east-elec.com/sites/default/files/sounder/1_109_0.png)
Characteristic | Min | Typical | Max | Notes |
Type | Piezo | |||
Excitation | Internal Driven | Tone: Continuous | ||
Sound Pressure Level dB at 30cm | 80.5 | Measured 90 dB at 10V-DC & 10cm | ||
Frequency kHz | 2.9 | 3.5 | 4.1 | Rated frequency ± 0.5 |
Voltage V | 10 | DC | ||
Current mA | 15 | 10V DC | ||
Temperature ºC | -20 | 70 | ||
Width mm | 24 | |||
Height mm | 11 | |||
Termination | pin |

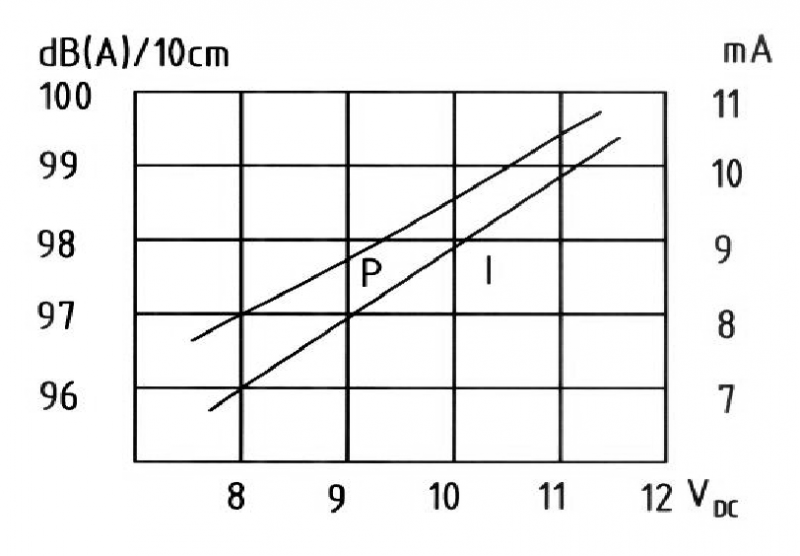

Characteristic Response:
![](https://www.east-elec.com/sites/default/files/sounder/3_116_0.png)

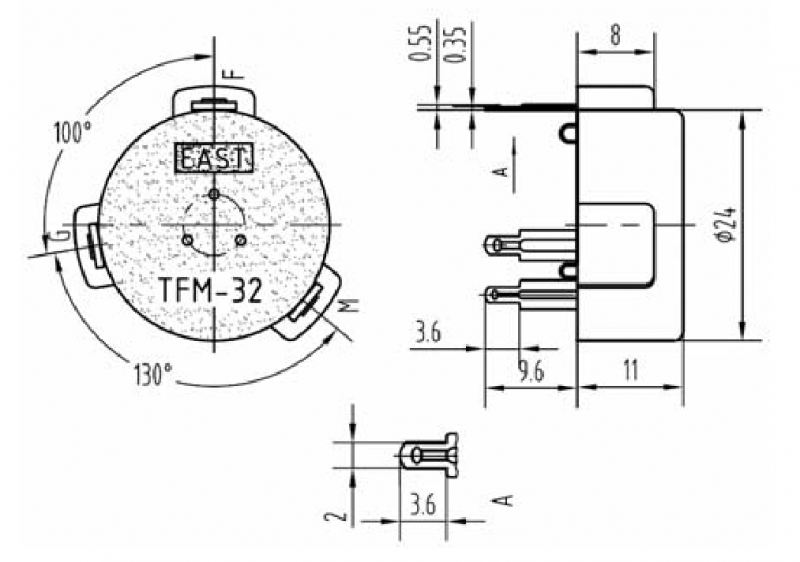

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/sounder/2_120_0.png)
