Features:
Low frequency
Low current drain
Light and compact
Characteristic | Min | Typical | Max | Notes |
Type | Piezo | |||
Excitation | External Driven | Tone: Square Wave | ||
Sound Pressure Level dB at 30cm | 80.46 | Measured 90 dB at 10cm | ||
Frequency kHz | 3 | Rated frequency ± 0.5 kHz | ||
Voltage V | 10 | peak to peak voltage of square wave | ||
Peak voltage allowed V | 30 | |||
Current mA | 3 | |||
Input Capacitance nF | 20 | ± 30% measured at 120 Hz | ||
Temperature ºC | -20 | 70 | ||
Width mm | 29.6 | Case:PA6/Black | ||
Height mm | 7.5 | |||
Weight g | 4.5 | |||
Termination | pin |

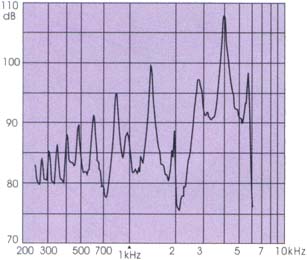

Characteristic Response:

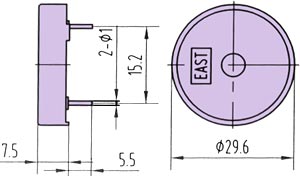

Dimension Drawing:
