Features:
Low frequency
Low current drain
Light and compact
| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | External Driven | Tone: Square Wave | ||
| Sound Pressure Level dB at 30cm | 85 | Measured 85 dB at 30cm | ||
| Frequency kHz | 1.2 | Rated frequency ± 0.5 kHz | ||
| Voltage V | 12 | peak to peak voltage of square wave | ||
| Peak voltage allowed V | 40 | |||
| Current mA | 3 | |||
| Input Capacitance nF | 66 | ± 30% measured at 120 Hz | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 45.3 | Case:ABS/Black | ||
| Height mm | 4.2 | |||
| Weight g | 5.5 | |||
| Termination | lead wire |

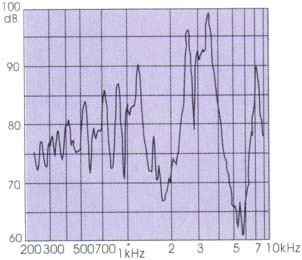

Characteristic Response:

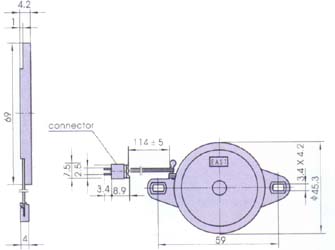

Dimension Drawing:
