Features:
Low frequency
Low current drain
Light and compact
![](https://www.east-elec.com/sites/default/files/sounder/p01_26_1_0.jpg)
Characteristic | Min | Typical | Max | Notes |
Type | Piezo | |||
Excitation | External Driven | Tone: Square Wave | ||
Sound Pressure Level dB at 30cm | 85 | Measured 85 dB at 30cm | ||
Frequency kHz | 1.2 | Rated frequency ± 0.5 kHz | ||
Voltage V | 12 | peak to peak voltage of square wave | ||
Peak voltage allowed V | 40 | |||
Current mA | 3 | |||
Input Capacitance nF | 66 | ± 30% measured at 120 Hz | ||
Temperature ºC | -20 | 70 | ||
Width mm | 45.3 | Case:UL1095-28AWG | ||
Height mm | 4.2 | |||
Weight g | 5.5 | |||
Termination | lead wire |

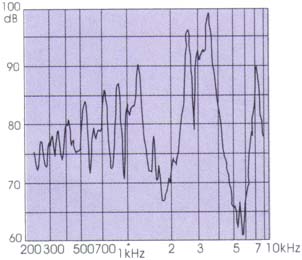

Characteristic Response:
![](https://www.east-elec.com/sites/default/files/sounder/p01_26_3_0.jpg)

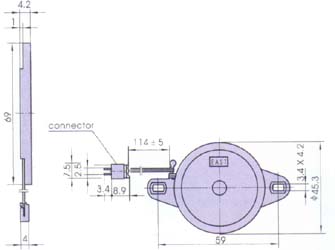

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/sounder/p01_26_2_0.jpg)
