Low frequency
Low current drain
Light and compact
Characteristic Min Typical Max Notes
Type Piezo
Excitation External Driven Tone: Square Wave
Sound Pressure Level dB at 30cm 60.46 Measured 70 dB at 10cm
Frequency kHz 2 Rated frequency ± 0.5 kHz
Voltage V 3 peak to peak voltage of square wave
Peak voltage allowed V 25
Current mA 3
Input Capacitance nF 19 ± 30% measured at 120 Hz
Temperature ºC -20 70
Width mm 22 Case:PA66/Black
Height mm 10.8
Weight g 2.4
Termination pin

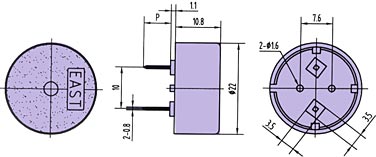

Dimension Drawing:
