TFM-59D

Features:
Super-mini size
Low current drain
High Output
Characteristic Min Typical Max Notes
Type Piezo
Excitation External Driven Tone: Square Wave
Sound Pressure Level dB at 30cm 74.46 Measured 84 dB at 10cm
Frequency kHz 4 Rated frequency ± 0.5 kHz
Voltage V 12 peak to peak voltage of square wave
Peak voltage allowed V 25
Current mA 6
Input Capacitance nF 11 ± 30% measured at 120 Hz
Temperature ºC -20 70
Width mm 12 Case:PC/Black
Height mm 7.5
Weight g 1
Termination pin
Characteristic Response:

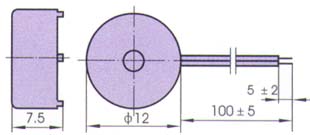

Dimension Drawing:
