Low frequency
Low current drain
Light and compact
Characteristic Min Typical Max Notes
Type Piezo
Excitation External Driven Tone: Square Wave
Sound Pressure Level dB at 30cm 80.46 Measured 90 dB at 10cm
Frequency kHz 1 Rated frequency ± 0.3 kHz
Voltage V 30 peak to peak voltage of square wave
Peak voltage allowed V 40
Input Capacitance nF 68 ± 30% measured at 120 Hz
Temperature ºC -25 70
Width mm 44 Case:ABS/Black
Height mm 13
Weight g 8
Termination pin

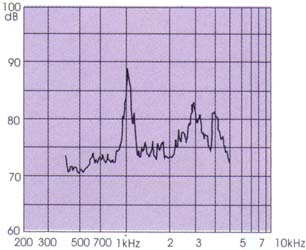

Characteristic Response:

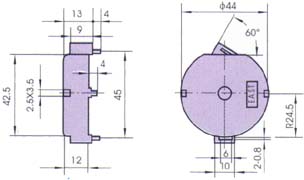

Dimension Drawing:
