| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 73.5 | Measured 83 dB at 4.8kHz & 10V-p-p Square Wave & 10cm | ||
| Frequency kHz | 4.5 | 4.8 | 5.1 | Rated frequency ±0.3 |
| Voltage V | 10 | 20 | p-p Square Wave | |
| Current mA | 5 | Square Wave 4.8kHz ; 10V p-p | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 13.8 | |||
| Height mm | 4 | |||
| Termination | lead wire |

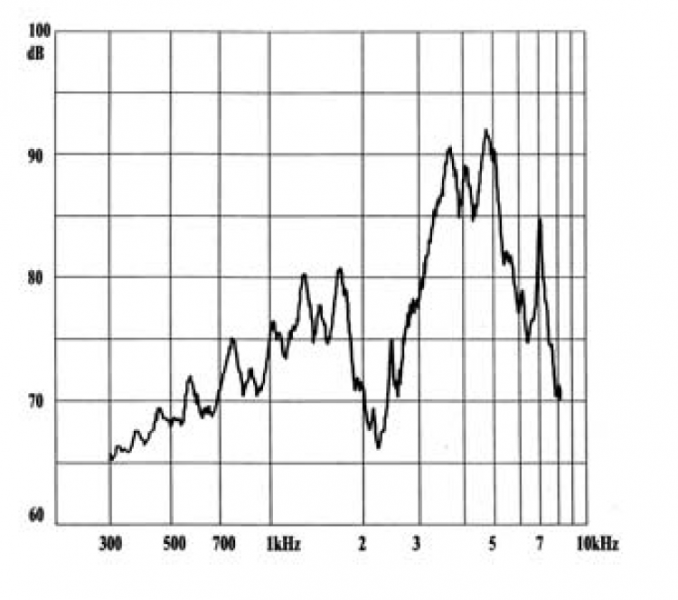

Characteristic Response:

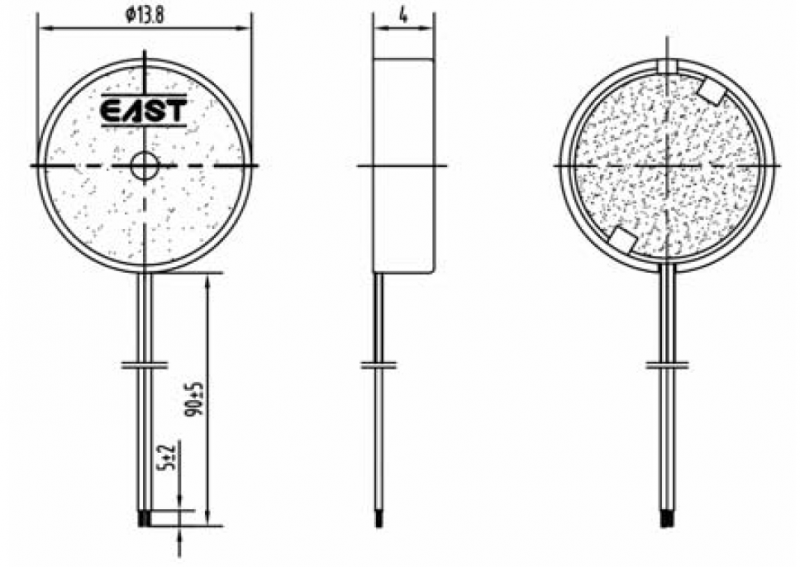

Dimension Drawing:
