| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | External Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 78.5 | Measured 88 dB at 2.5kHz & 9V-p-p Square Wave & 10cm | ||
| Frequency kHz | 2 | 2.5 | 3 | Rated frequency ±0.5 |
| Voltage V | 9 | 40 | p-p Square Wave | |
| Current mA | 12 | Square Wave 2.5kHz ; 9V p-p | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 23 | |||
| Height mm | 9.14 | |||
| Termination | lead wire |

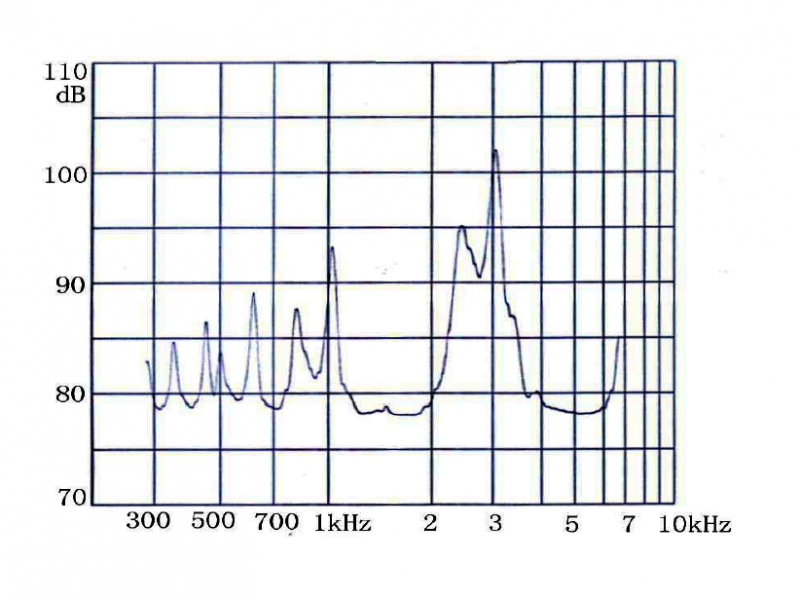

Characteristic Response:

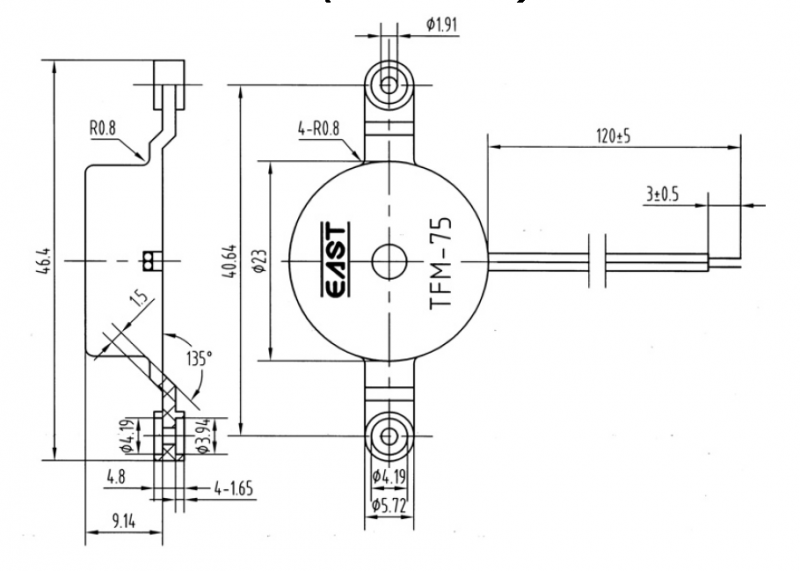

Dimension Drawing:
