High output
High reliability
Characteristic Min Typical Max Notes
Type Magnetic
Excitation External Driven Tone: Continuous
Sound Pressure Level dB at 30cm 110 Measured 100 dB at 30cm
Frequency kHz 3.2 Rated frequency ± 0.5 kHz
Voltage V 9 peak to peak voltage of square wave
Current mA 180
Input Capacitance nF 22 ±30% Measured at 120Hz
Temperature ºC -20 70
Width mm Case:ABS/Black
Height mm 16.5
Weight g 8
Mounting Custom
Termination lead wire

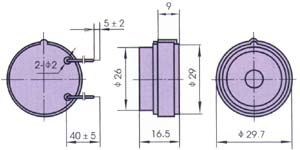

Dimension Drawing:

Driver Circuit
