High output
High reliability
Characteristic Min Typical Max Notes
Type Piezo
Excitation External Driven Tone: Continuous
Sound Pressure Level dB at 30cm 100 Measured 100 dB at 30cm
Frequency kHz 3.2 Rated frequency ± 0.5 kHz
Voltage V 9 peak to peak voltage of square wave
Peak voltage allowed V 60
Current mA 180
Temperature ºC -20 70
Width mm 29.7 Case:PC/Black
Height mm 16.5
Weight g 8
Termination pin

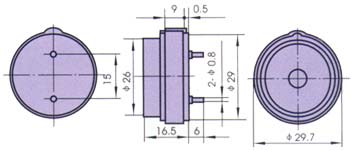

Dimension Drawing:

Driver Circuit
