W-18A

Characteristic Min Typical Max Notes
Type Piezo
Excitation Internal Driven Tone: Continuous
Sound Pressure Level dB at 30cm 115.5 Measured 105 dB at 24V-DC & 100cm
Frequency kHz 1 2 3
Voltage V 18 24 26 DC
Current mA 200 24 V DC
Temperature ºC -30 70
Width mm 52.5
Height mm 48.5
Termination lead wire

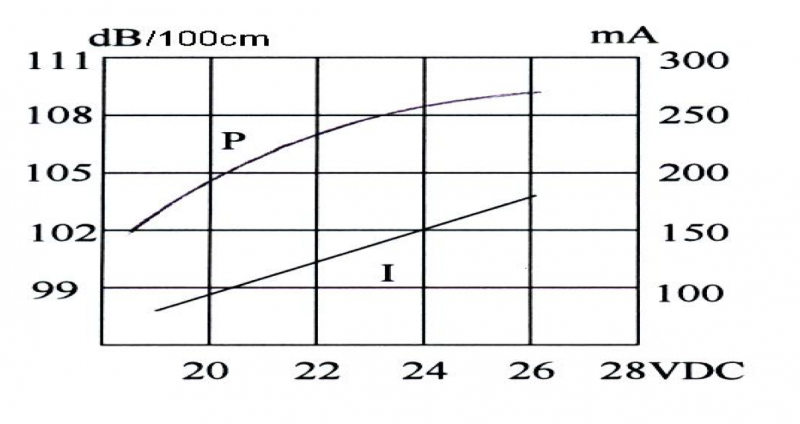

Characteristic Response:

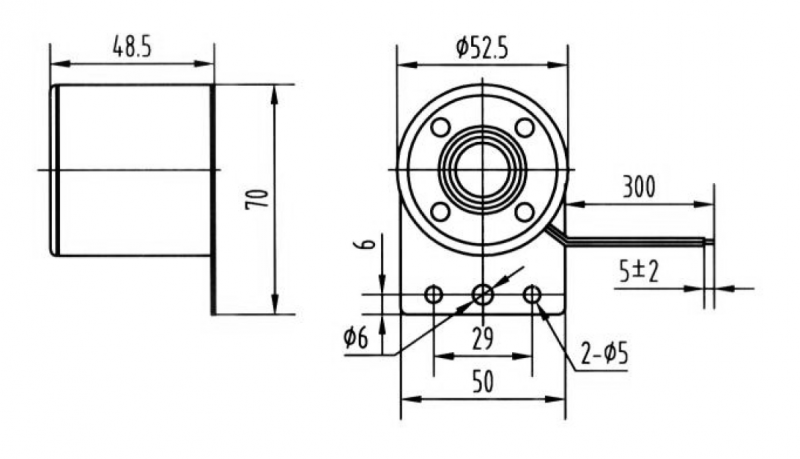

Dimension Drawing:
