| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 120.5 | Measured 110 dB at 12V-DC & 100cm | ||
| Frequency kHz | 1 | 2 | 3 | |
| Voltage V | 8 | 12 | 15 | DC |
| Current mA | 1000 | 12V DC | ||
| Temperature ºC | -20 | 105 | ||
| Width mm | 92 | |||
| Height mm | 79 | |||
| Termination | lead wire |

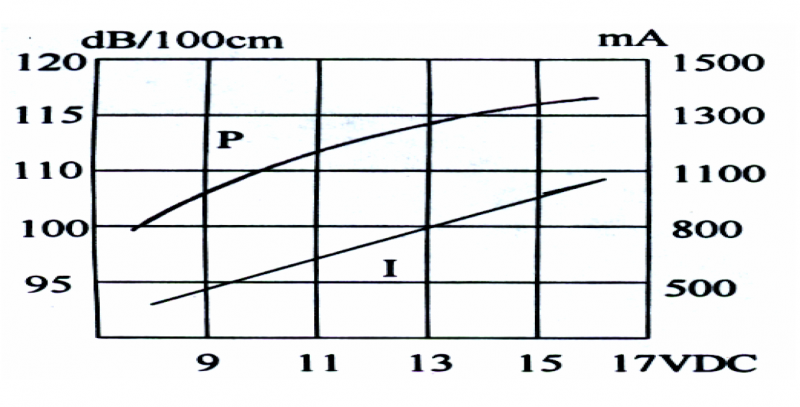

Characteristic Response:

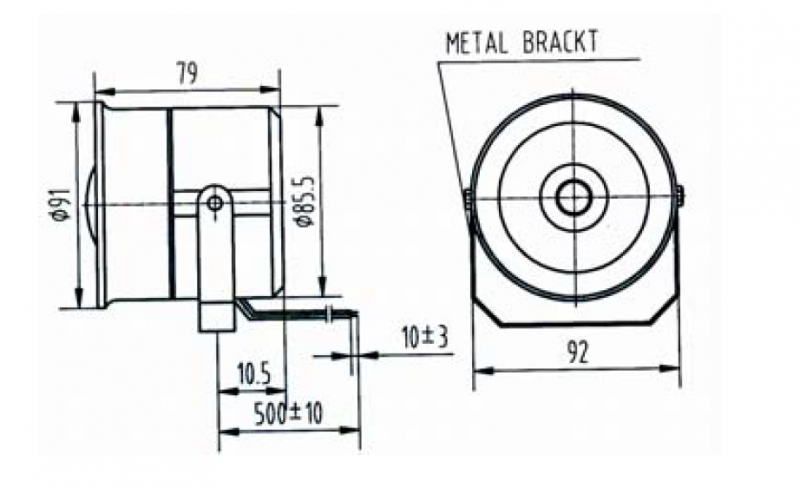

Dimension Drawing:
