| Characteristic | Min | Typical | Max | Notes |
| Type | Piezo | |||
| Excitation | Internal Driven | Tone: Continuous | ||
| Sound Pressure Level dB at 30cm | 110.5 | Measured 100 dB at 24V-DC & 100cm | ||
| Frequency kHz | 1 | 2 | 3 | |
| Voltage V | 12 | 24 | 28 | DC |
| Current mA | 150 | 24 V DC | ||
| Temperature ºC | -20 | 70 | ||
| Width mm | 40 | |||
| Height mm | 57.5 | |||
| Termination | lead wire |

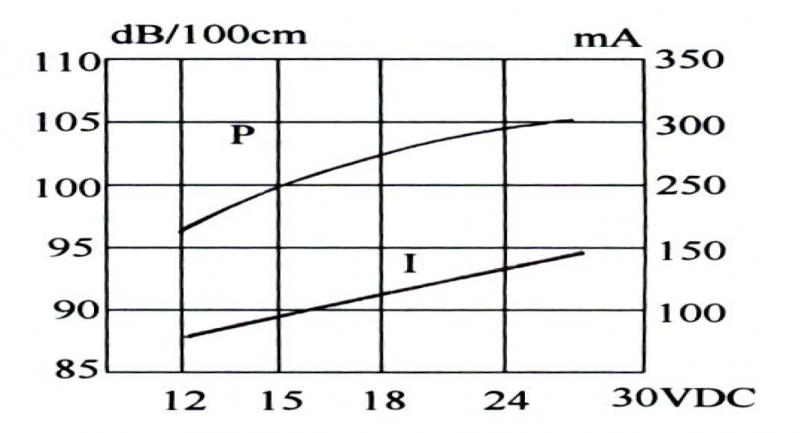

Characteristic Response:

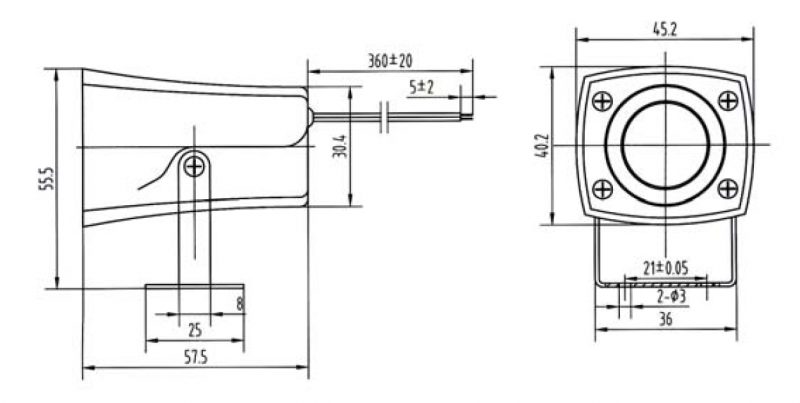

Dimension Drawing:
