High output and high impedance
Characteristic Min Typical Max Notes
Type Piezo
Excitation External Driven Tone: Continuous
Sound Pressure Level dB at 30cm 105 Measured 105 dB at 30cm
Frequency kHz 2.2 3.1 4
Voltage V 12 50 peak to peak voltage of square wave
Temperature ºC -40 105
Width mm 45 Case:PA6/Black
Height mm 23.3
Weight g 12
Termination pin
Characteristic Response:

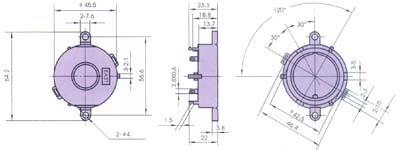

Dimension Drawing:

Driver Circuit
