![](https://www.east-elec.com/sites/default/files/sounder/1_132_0.png)
Characteristic | Min | Typical | Max | Notes |
Type | Piezo | |||
Excitation | Internal Driven | Tone: Continuous | ||
Sound Pressure Level dB at 30cm | 118.5 | Measured 108 dB at 12V-DC & 100cm | ||
Frequency kHz | 2.3 | 2.8 | 3.3 | |
Voltage V | 6 | 12 | 15 | DC |
Current mA | 300 | 12 V DC | ||
Temperature ºC | -20 | 85 | ||
Width mm | 60 | |||
Height mm | 38 | |||
Weight g | 110 | |||
Termination | lead wire |

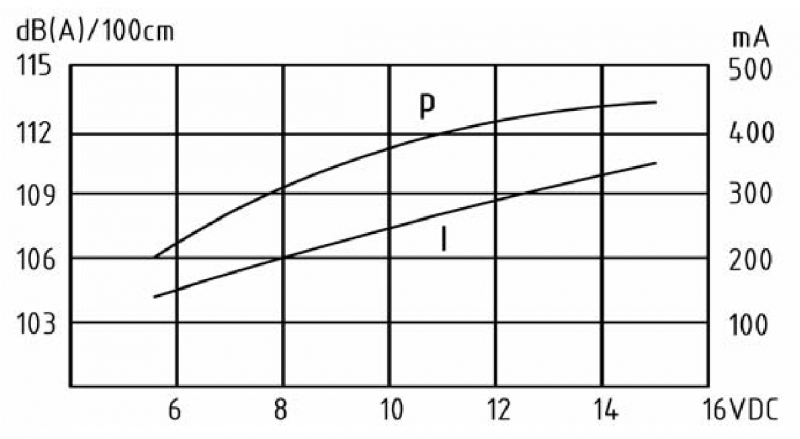

Characteristic Response:
![](https://www.east-elec.com/sites/default/files/sounder/3_139_0.png)

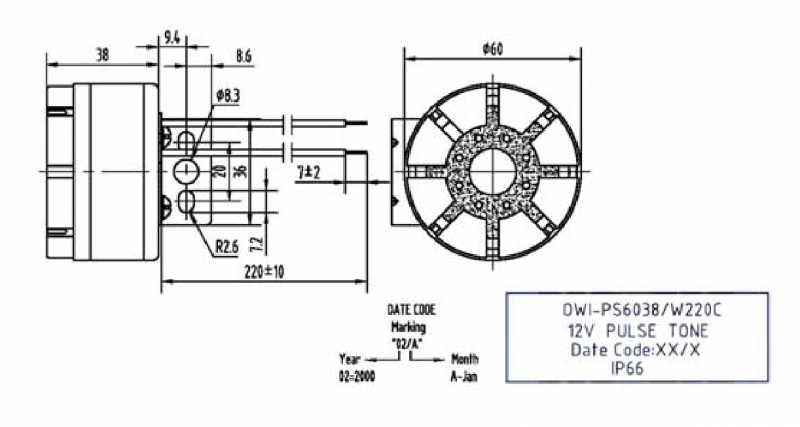

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/sounder/2_143_0.png)
