High Fidelity
Vehicle Applications
Characteristic Minimum Rated Maximum Notes
Type of Magnet NdFeB
Type of Frame Metal
Type of Diaphragm PET
Sound Pressure Level dB at 30cm 97.5 measured 93±3dB At 1W/0.5M 0.4;0.5,0.6;0.8K Hz AVE
Power W 6 10
Frequency kHz 0.1 0.23 10 within 20dB
Available Input Impedance Ω 8 At 0.6 kHz and 1.0V
Width mm 102 102
Height mm 36.5
Mounting Chassis Mount
Termination lead wire

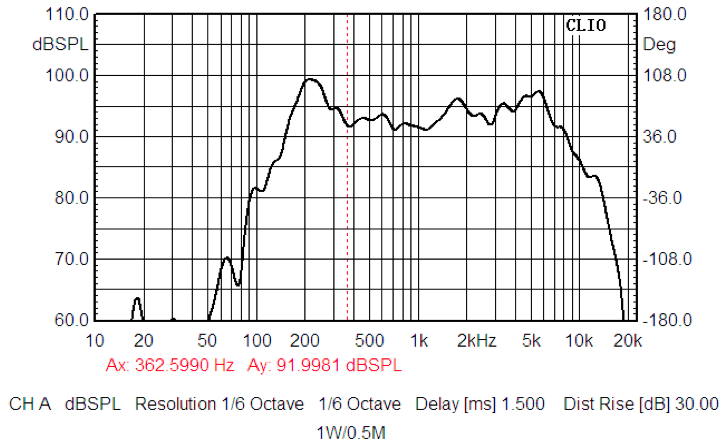

Characteristic Response:

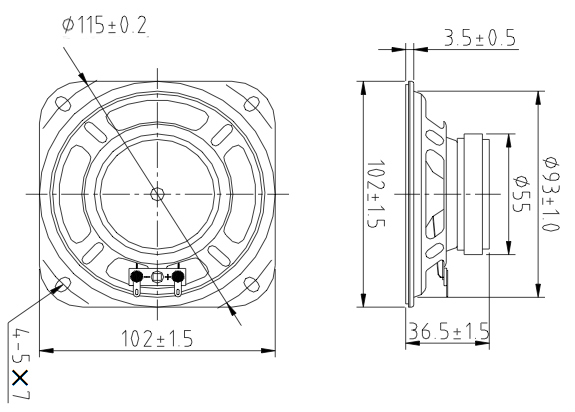

Dimension Drawing:
