Features:
Small 1 Watt Speaker
Very low profile: 8.6mm
| Characteristic | Minimum | Rated | Maximum | Notes |
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 77.5 | Measured 87±3dB at 10cm at 1000Hz. | ||
| Power W | 1 | 1.2 | Must be normal at 1.2W white noise for 1 minute. | |
| Frequency kHz | 0.2 | 0.32 | 10 | ±20%. Operational test: without irregularity in sound or volume, at2.83V sine wave from 200Hz to 5kHz. |
| Available Input Impedance Ω | 8 | ±15% | ||
| Temperature ºC | -25 | 60 | Operation Temperature. Storage Temp is -30C to 70C. | |
| Width mm | 50 | 50 | ||
| Height mm | 8.6 | |||
| Weight g | 13 | |||
| Mounting | Custom | |||
| Termination | lead wire |

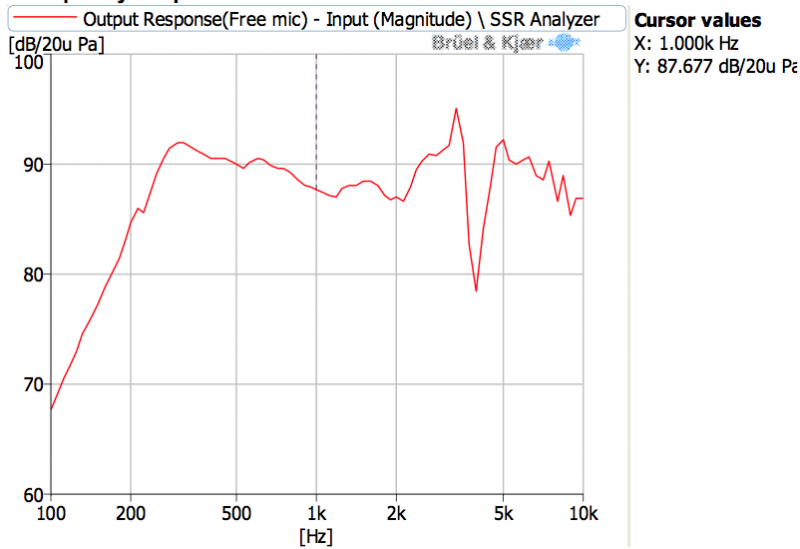

Characteristic Response:

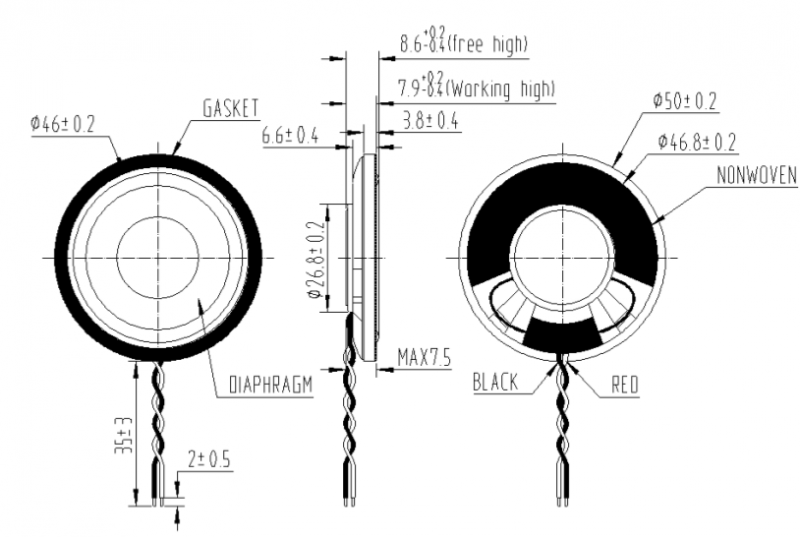

Dimension Drawing:

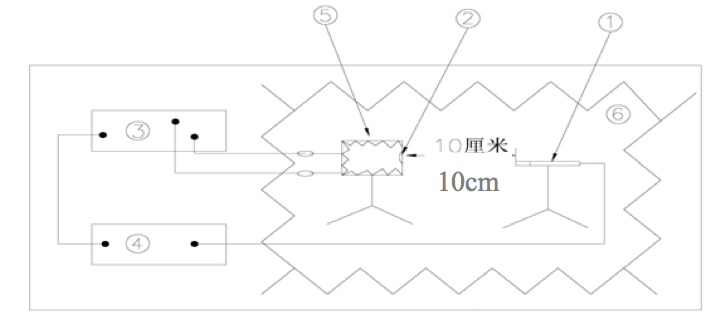

Block Diagram of Measurement Method. Test Microphone: B&K4191. Amplifier: B&K2716C. Analyzer:B&K3560C
