Features:
Applications: Audio, monitoring, control equipment
Suitable for medical devices
| Characteristic | Minimum | Rated | Maximum | Notes |
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Sound Pressure Level dB at 30cm | 82 | SPL Normal Power Input at 0.3m (±3dB) | ||
| Power W | 3 | 5 | ||
| Frequency kHz | 0.3 | 20 | Frequency Range at SPL-10dB | |
| Available Input Impedance Ω | 4 | 4Ω±15% | ||
| Width mm | 34 | 34 | ||
| Height mm | 15 | |||
| Weight g | 28 | |||
| Mounting | Panel Mount | |||
| Termination | lead wire |

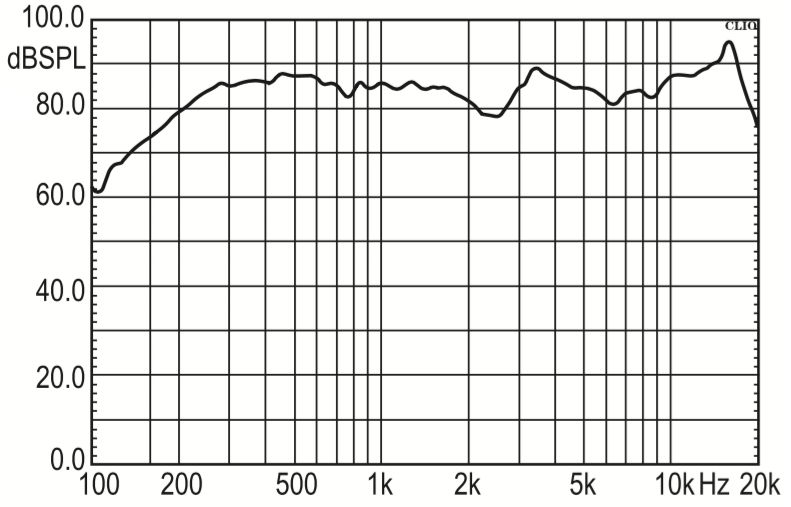

Characteristic Response:

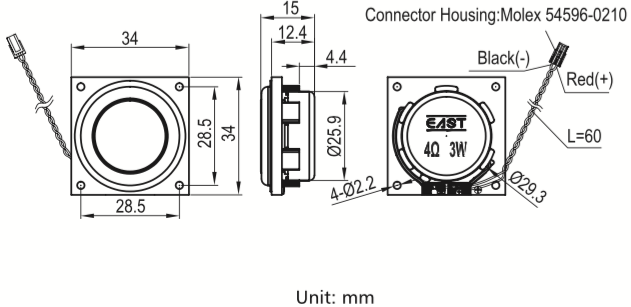

Dimension Drawing:
