Features:
High sound volume: 91dB at 1 meter
Suitable for Medical applications and industrial uses
![](https://www.east-elec.com/sites/default/files/speaker/SED-64R19-8N1R-photo.png)
Characteristic | Minimum | Rated | Maximum | Notes |
Type of Magnet | NdFeB | |||
Type | Magnetic | |||
Sound Pressure Level dB at 30cm | 100.5 | 91dB at 1m under normal power | ||
Power W | 1 | 2 | ||
Frequency kHz | 0.34 | 20 | ±20% | |
Available Input Impedance Ω | 8 | 8Ω±15% | ||
Width mm | 64 | |||
Height mm | 19.35 | |||
Weight g | 48 | |||
Termination | lead wire |

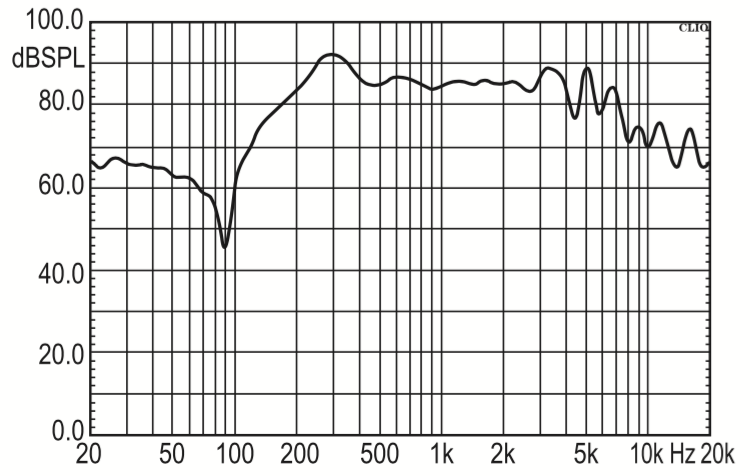

Characteristic Response:
![](https://www.east-elec.com/sites/default/files/speaker/SED-64R19-8N1R-char.png)

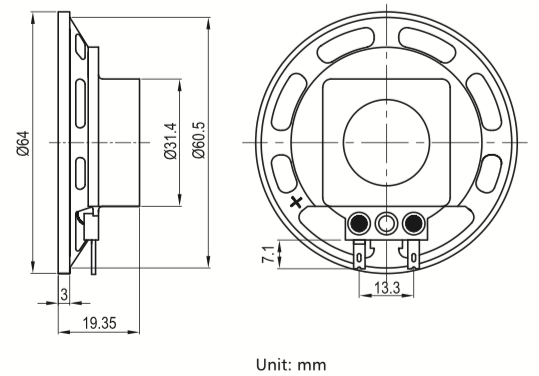

Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/speaker/SED-64R19-8N1R-dim.png)
