Features:
Laptop, Medical and Telecommunication applications
Alarm and Monitoring.
High sensitivity and Wide Frequency Response
![](https://www.east-elec.com/sites/default/files/speaker/SEM-13R3.1-8N0.2R-photo.png)
Characteristic | Minimum | Rated | Maximum | Notes |
Type | Magnetic | |||
Sound Pressure Level dB at 30cm | 80.5 | 90dB ± 3 at 10cm Normal Power Input | ||
Power W | 0.2 | 0.5 | ||
Frequency kHz | 1 | 20 | (SPL_max - 10)dB at Frequency Min and Frequency Max | |
Available Input Impedance Ω | 8 | 8 Ω ± 15% Rated Impedance | ||
Width mm | 13 | 13 | ||
Height mm | 5.1 | |||
Termination | solder tab |

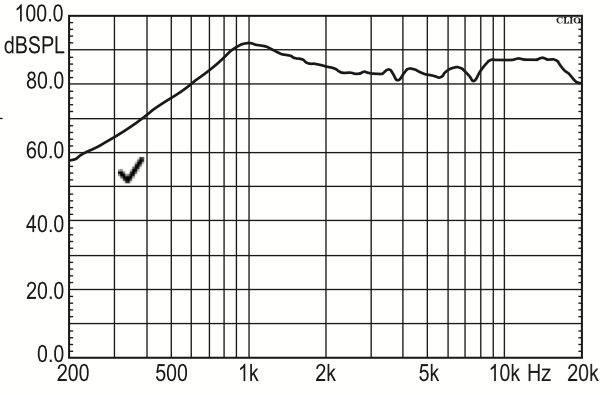

Characteristic Response:
![](https://www.east-elec.com/sites/default/files/speaker/SEM-13R3.1-8N0.2R-char.png)
Dimension Drawing:
![](https://www.east-elec.com/sites/default/files/speaker/SEM-13R3.1-8N0.2R-dim.png)
