Features:
Medical and Auto Industries
Smart Home Applications
Small and Discrete, packed in reel
Wide Frequency Response
Reflow soldering 260ºC
| Characteristic | Minimum | Rated | Maximum | Notes |
| Type of Magnet | NdFeB | |||
| Type of Frame | Plastic | |||
| Type of Diaphragm | Complex | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 77.5 | 87dB ± 3 at 10cm Normal Power Input | ||
| Power W | 0.7 | 1 | ||
| Frequency kHz | 0.9 | 20 | (SPL_max - 10)dB at Frequency Min and Frequency Max | |
| Available Input Impedance Ω | 8 | 8 Ω ± 15% Rated Impedance | ||
| Width mm | 13 | 13 | ||
| Height mm | 4 | |||
| Weight g | 1.1 | |||
| Mounting | Surface Mount | |||
| Termination | surface mount |

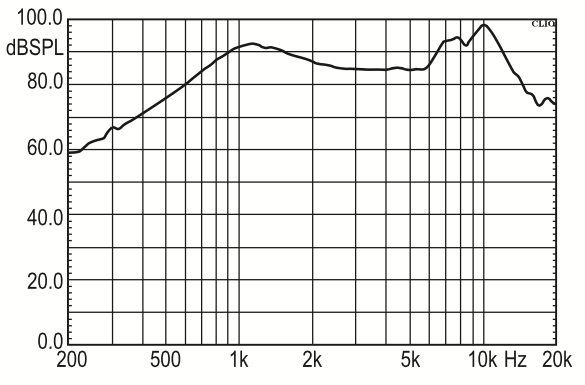

Characteristic Response:

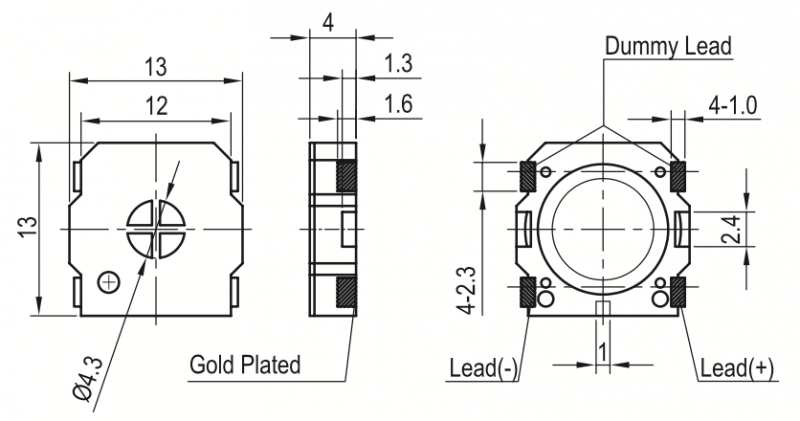

Dimension Drawing:

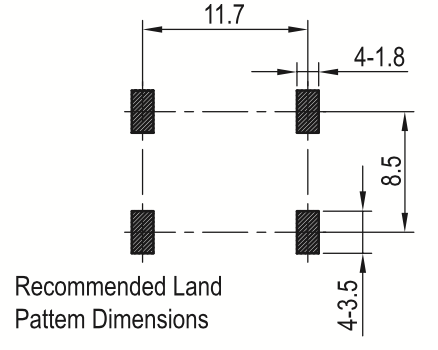

Printed Circuit Dimensions
