Medical and Auto Industries
Smart Home Applications
Small and Discrete, packed in reel
Wide Frequency Response
Reflow soldering 260ºC
Characteristic Minimum Rated Maximum Notes
Type Magnetic
Sound Pressure Level dB at 30cm 77.5 87dB ± 3 at 10cm Normal Power Input
Power W 0.5 0.8
Frequency kHz 0.85 20 (SPL_max - 10)dB at Frequency Min and Frequency Max
Available Input Impedance Ω 8 8 Ω ± 15% Rated Impedance
Width mm 15 15
Height mm 4
Weight g 1.5
Mounting Surface Mount
Termination surface mount

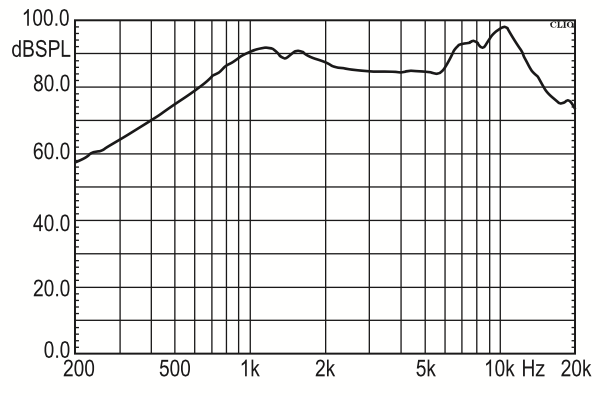

Characteristic Response:

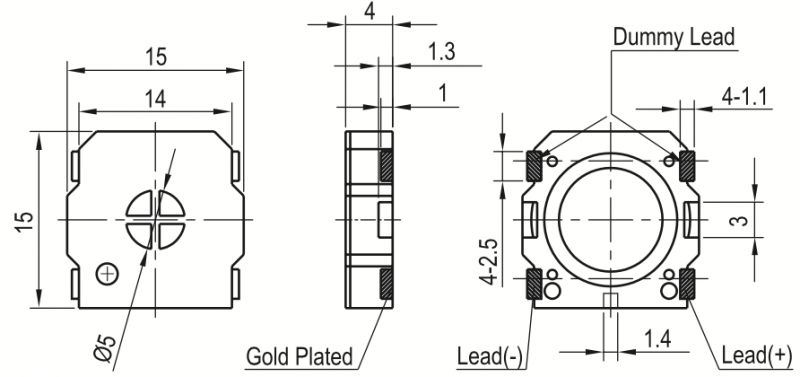

Dimension Drawing:
