Multimedia Applications
Small size
Low Frequency
High Power
Characteristic Minimum Rated Maximum Notes
Type of Magnet NdFeB
Type of Frame Plastic
Type of Diaphragm Complex
Type Magnetic
Sound Pressure Level dB at 30cm 85 Measured 85±3dB at 2W and 30cm.
Power W 2 3
Frequency kHz 0.25 0.25 20
Available Input Impedance Ω 8 8 64
Width mm 36
Height mm 16.8

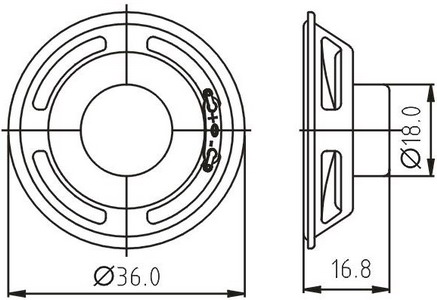

Dimension Drawing:
