Voice Applications
Water Resistant
Characteristic Minimum Rated Maximum Notes
Type of Magnet NdFeB
Type of Frame Metal
Type of Diaphragm PET
Type Magnetic
Sound Pressure Level dB at 30cm 88.44 Measured 84±3dB at 2W and 50cm.
Power W 2 3
Frequency kHz 0.6 0.6 6
Available Input Impedance Ω 4 8 64
Width mm 45
Height mm 23

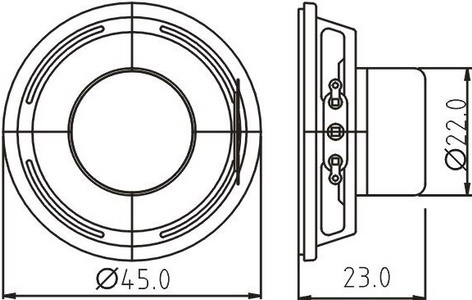

Dimension Drawing:
