Features:
Cone
Voice Applications
External
| Characteristic | Minimum | Rated | Maximum | Notes |
| Type of Magnet | Ferrite | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | Paper | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 86.44 | Measured 82±3dB at 0.3W and 50cm. | ||
| Power W | 0.3 | 0.6 | ||
| Frequency kHz | 0.45 | 0.45 | 5 | |
| Available Input Impedance Ω | 4 | 8 | 64 | |
| Width mm | 50 | |||
| Height mm | 16.5 |

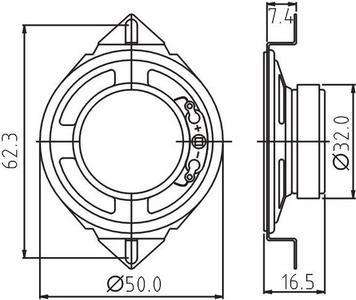

Dimension Drawing:
